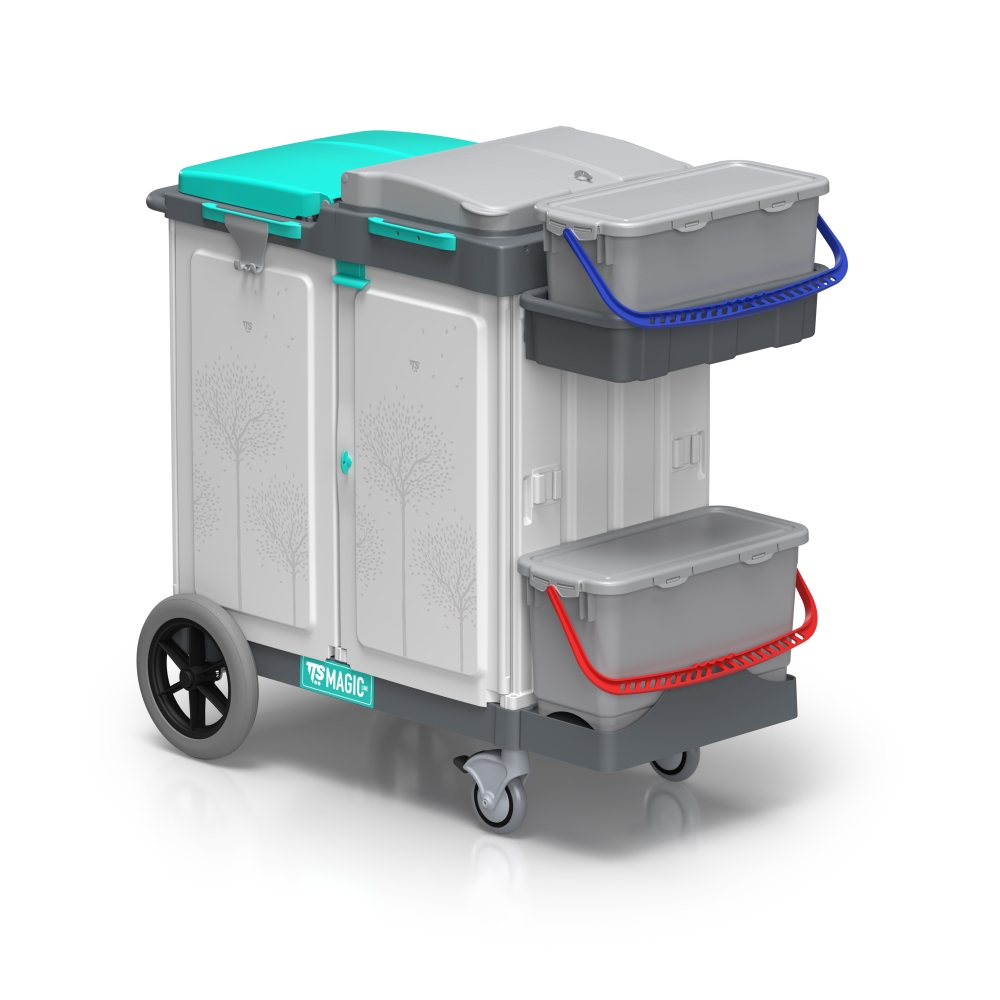

Magic System 760E Traxel
Closed trolley with 3 areas: 150 L waste collection, storage area with 2 drawers and washing area with pre-soaking, complete with large fixed wheels
Multipurpose polypropylene trolley, modular and customisable to meet every cleaning need
Ideal for handling on irregular outdoor surfaces or with a slight slope
GREEN BOX
Components made with certified recycled plastic PSV - Plastic Second Life
Carbon Footprint Systematic Approach: greenhouse gas emissions for each stage of the life cycle of this product have been calculated with ICMQ certified software
Quantifying the Carbon Footprint of a product (CFP) enables an environmentally conscious and responsible choice
Eco-friendly: made entirely of plastic, rustproof, robust and fully recyclable
Bag not included
Possibility to apply a pedal set
Closed trolley with 3 areas: 150 L waste collection, storage area with 2 drawers and washing area with pre-soaking, complete with large fixed wheels
Multipurpose polypropylene trolley, modular and customisable to meet every cleaning need
Ideal for handling on irregular outdoor surfaces or with a slight slope
GREEN BOX
Components made with certified recycled plastic PSV - Plastic Second Life
Carbon Footprint Systematic Approach: greenhouse gas emissions for each stage of the life cycle of this product have been calculated with ICMQ certified software
Quantifying the Carbon Footprint of a product (CFP) enables an environmentally conscious and responsible choice
Eco-friendly: made entirely of plastic, rustproof, robust and fully recyclable
Bag not included
Possibility to apply a pedal set
Advantages
- Hermetic closure: buckets with hook system between bucket and lid and a special gasket that ensure an airtight seal
- Hygienic: the plastic frames separate the trolley modules avoiding contamination between the washing, storage and waste collection area
- Shock-resistant: polypropylene, naturally stainless and elastic, guarantees shockproof performance
- Modular: components and accessories allow you to customize the trolley for every need, making it easy to update or repair at any time
- Easy to maintain: the smooth surfaces and the absence of cavities facilitate cleaning and guarantee a high level of hygiene
- Highest safety: key system to manage safely the trolley
- Discrete: the soft closing lid assures a noiseless moving
- Efficient: The large fixed wheels facilitate the trolley's handling on irregular outdoor surfaces and with a slight slope
- Customisable: the panels of the trolley can be customized with decorative motifs, advertising or with the image of the cleaning company to make the trolley a means of communication
Features
Magic System configurations are designed to better meet the needs of those who need an integrated washing system in the trolley. They are equipped with 4L colour coded buckets with transparent lids and 125 mm wheels
Technical information
| code | notes | cm | L | pcs | kg | m³ |
|---|---|---|---|---|---|---|
| MS760E070B00 |  123  58  117 | 150 | 1 | 36,85 | 0,399 |
Component list
| cod. | Description | qty |
|---|---|---|
| 00003366B | 4 L bucket with handle on the upper edge, blue | 1 pc |
| 00003366G | 4 L bucket with handle on the upper edge, yellow | 1 pc |
| 00003366R | 4 L bucket with handle on the upper edge, red | 1 pc |
| 00003366V | 4 L bucket with handle on the upper edge, green | 1 pc |
| 0E003215B | Grey Hermetic bucket and lid with blue handle, 20 L | 1 pc |
| 0E003215R | Grey Hermetic bucket and lid with red handle, 20 L | 1 pc |
| R090790 | Lid for 150 L bag holder with check-list holder, green | 1 pc |
| R590719 | Divider to separate 150 L bag holder in 2x75, 3x50 or 50+100 L | 1 pc |
| S060110 | Set with adhesive labels for buckets | 1 pc |
| S590785 | Bucket raising device for 22 L Magic drawer, grey | 1 pc |
| T59070472.0 | Big base with two ø 125 mm wheels for outdoor use and two large fixed wheels | 1 pc |
| T590715V.0 | 150 L bag holder (male version) with 2 handle holders with bars for floor sign, screws, plug and Shhut system | 1 pc |
| T590730.0 | Magic and Magic Hotel side tray, 54x26,5x12 cm | 1 pc |
| T590739.0 | Closing profile for Magic and Magic Hotel central tray, complete with screws and caps | 1 pc |
| T590781 | 22 L drawer without lock | 2 pcs |
| T590810.0 | Magic and Magic Hotel plate for Hermetic bucket or bag holder, 48x22x15 cm | 1 pc |
| T590890V.0 | Central bottomless basket with 2 bars, lid with key and Shhut System | 1 pc |
| T690751 | Asymmetric frame hooks-rails with screws | 2 pcs |
| T690773E.0 | Fixed side panel, decorated with graphics, with plugs and screws | 3 pcs |
| T690774E.0 | Door for bag holder, decorated with graphics, with plugs and screws | 1 pc |
| T690775V.0 | Side door, decorated with grey graphics, opening to the right, with plugs and screws | 1 pc |
| V050069 | Set with 6 “T” plugs for asymmetric frame, light grey | 2 pcs |
