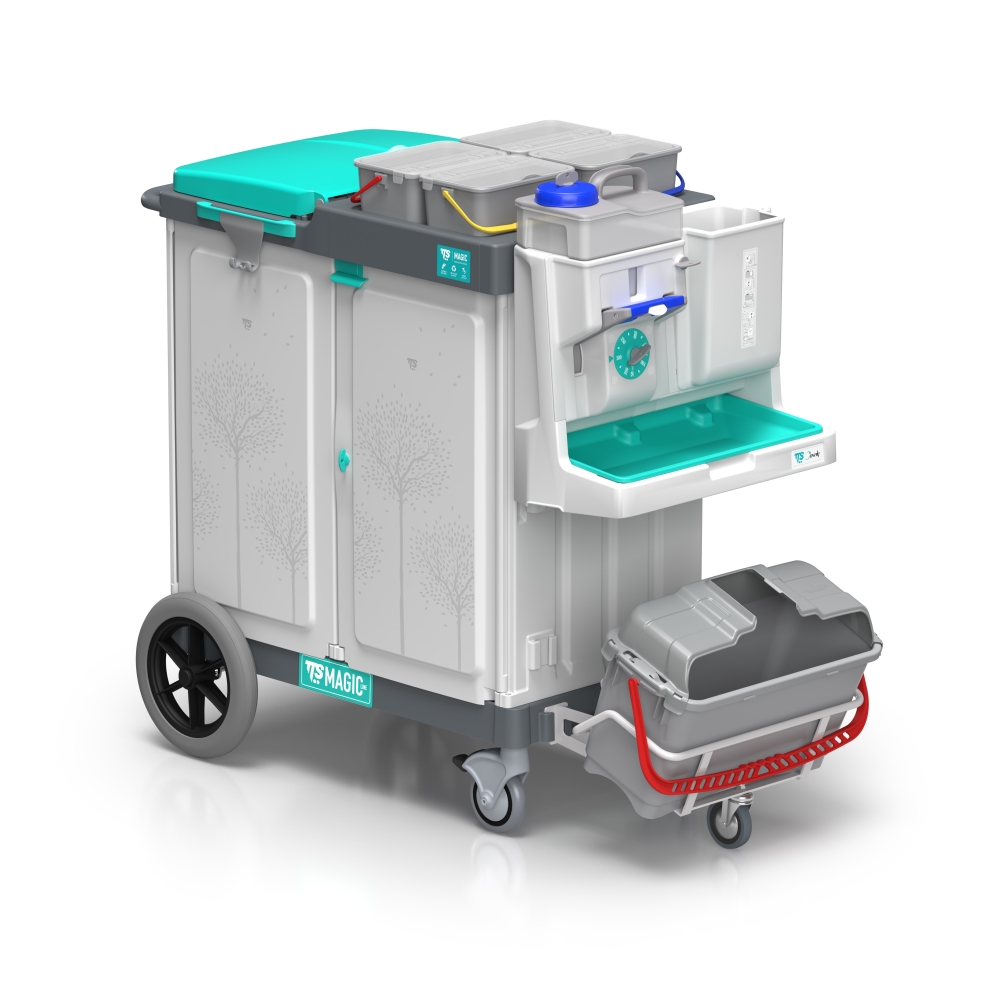

Magic System 806E Traxel
Closed trolley with 3 areas: 150 L waste collection, storage area with drawer, washing area with Dosely soaking station and Pockety touch-free disposing system of the mops, complete with large fixed wheels
Multipurpose polypropylene trolley, modular and customisable to meet every cleaning need
Ideal for handling on irregular outdoor surfaces or with a slight slope
GREEN BOX
Components made with certified recycled plastic PSV - Plastic Second Life
Carbon Footprint Systematic Approach: greenhouse gas emissions for each stage of the life cycle of this product have been calculated with ICMQ certified software*
Quantifying the Carbon Footprint of a product (CFP) enables an environmentally conscious and responsible choice
*Dosely not included in product Carbon footprint (CFP)
Eco-friendly: made entirely of plastic, rustproof, robust and fully recyclable
Sustainable: reduces the consumption of chemicals and water thanks to the on demand and horizontal soaking that humidifies only the cleaning fibre
Dosely (cod. 00005905V) and bags not included
Possibility to apply a pedal set
Closed trolley with 3 areas: 150 L waste collection, storage area with drawer, washing area with Dosely soaking station and Pockety touch-free disposing system of the mops, complete with large fixed wheels
Multipurpose polypropylene trolley, modular and customisable to meet every cleaning need
Ideal for handling on irregular outdoor surfaces or with a slight slope
GREEN BOX
Components made with certified recycled plastic PSV - Plastic Second Life
Carbon Footprint Systematic Approach: greenhouse gas emissions for each stage of the life cycle of this product have been calculated with ICMQ certified software*
Quantifying the Carbon Footprint of a product (CFP) enables an environmentally conscious and responsible choice
*Dosely not included in product Carbon footprint (CFP)
Eco-friendly: made entirely of plastic, rustproof, robust and fully recyclable
Sustainable: reduces the consumption of chemicals and water thanks to the on demand and horizontal soaking that humidifies only the cleaning fibre
Dosely (cod. 00005905V) and bags not included
Possibility to apply a pedal set
Advantages
- Total control: reduces subjectivity of the operator allowing total control of the dosage
- Effective: the cleaning solution is protected in a hermetic tank that keeps intact the active ingredients of the chemical
- Versatile: allows you to adapt the moistness of the mop to the size of the area to be cleaned and the type of floor
- Touch-free: touch-free detaching system allows mops to be removed without contact
- Hygienic: the plastic frames separate the trolley modules avoiding contamination between the washing, storage and waste collection area
- Shock-resistant: polypropylene, naturally stainless and elastic, guarantees shockproof performance
- Modular: components and accessories allow you to customize the trolley for every need, making it easy to update or repair at any time
- Easy to maintain: the smooth surfaces and the absence of cavities facilitate cleaning and guarantee a high level of hygiene
- Efficient: The large fixed wheels facilitate the trolley's handling on irregular outdoor surfaces and with a slight slope
- Highest safety: key system to manage safely the trolley
- Discrete: the soft closing lid assures a noiseless moving
- Customisable: the panels of the trolley can be customized with decorative motifs, advertising or with the image of the cleaning company to make the trolley a means of communication
Features
Magic System configurations designed in order to meet the needs of those who need an integrated washing system. They are equipped with 4 L colour coded buckets with transparent lids and 125 mm wheels
Technical information
| code | notes | cm | L | pcs | kg | m³ |
|---|---|---|---|---|---|---|
| DS806E070A00 |  130  60  123 | 150 | 1 | 37,84 | 0,463 |
Component list
| cod. | Description | qty |
|---|---|---|
| 00003218 | Pockety lid for 20 L bucket, grey | 1 pc |
| 00003360EB | 4 L grey rectangular bucket with blue handle | 1 pc |
| 00003360EG | 4 L grey rectangular bucket with yellow handle | 1 pc |
| 00003360ER | 4 L grey rectangular bucket with red handle | 1 pc |
| 00003360EV | 4 L grey rectangular bucket with green handle | 1 pc |
| 00003372 | Transparent lid with hinged opening for 4 L buckets (cod. 00003361 and similar) | 4 pcs |
| 0E003213R | Grey rectangular bucket with red handle, 20 L | 1 pc |
| L360323 | Rilsan painted structure for Pockety system, with ø 80 mm wheel | 1 pc |
| R090790 | Lid for 150 L bag holder with check-list holder, green | 1 pc |
| R590719 | Divider to separate 150 L bag holder in 2x75, 3x50 or 50+100 L | 1 pc |
| S060110 | Set with adhesive labels for buckets | 1 pc |
| T59070472.0 | Big base with two ø 125 mm wheels for outdoor use and two large fixed wheels | 1 pc |
| T590715V.0 | 150 L bag holder (male version) with 2 handle holders with bars for floor sign, screws, plug and Shhut system | 1 pc |
| T590736V.0 | Central basket female/female connection with plugs | 1 pc |
| T590739.0 | Closing profile for Magic and Magic Hotel central tray, complete with screws and caps | 1 pc |
| T590781 | 22 L drawer without lock | 1 pc |
| T690750 | Single frame hooks-rials reinforced with screws, beige | 2 pcs |
| T690773E.0 | Fixed side panel, decorated with graphics, with plugs and screws | 3 pcs |
| T690774E.0 | Door for bag holder, decorated with graphics, with plugs and screws | 1 pc |
| T690775V.0 | Side door, decorated with grey graphics, opening to the right, with plugs and screws | 1 pc |
| V050069 | Set with 6 “T” plugs for asymmetric frame, light grey | 2 pcs |
